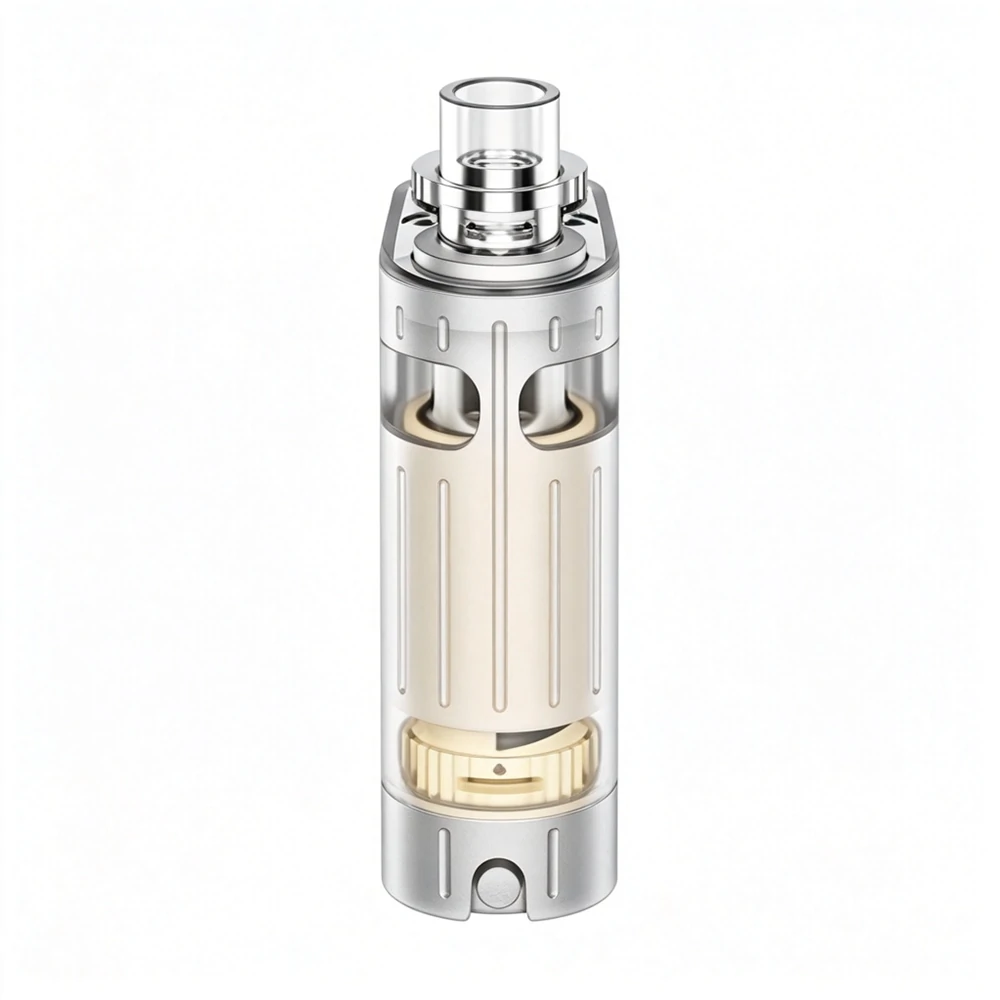

T Vibe
Price range: $215.00 through $228.00
Technical Specification
Weight: 230 g (battery included) Body
Material: Black
version: PC, PEEK / Translucent
version: PPSU, PEEK
Battery: Molicel P50B, 5000mAh, 21700, removable
Screen: 0.96-inch color OLED Glass
tube: 16 mm diameter
Shipping Info
Shipping Cost:
Free shipping worldwide for orders over $200 (excluding some remote areas).
Order Processing Time: All orders placed from Monday to Friday will be processed and shipped within 2 business days.
Package & Contents
Packaging: Grey rigid gift box
Package Dimensions: L160 × W95 × H70 mm
Gross Weight: 350 g
Package Contents: T Vibe Aromatherapy Diffuser, Molicel P50B Battery, User Manual, USB-C Cable, 18mm & 14mm WPA, two 16mm-diameter glass tubes, Cleaning Brush, Silicone O-Ring Set, Mesh Screen Set.
T Vibe Product Description
T Vibe
Precision-Engineered for
Pure Flavor
Every detail, from the 0.05mm stainless steel heating element to the isolated PEEK airflow path, is designed to deliver consistent, clean vapor without compromise.
01
Heating Technology
0.05mm SUS316L Foil Heating Element
The T Vibe uses a 0.05 mm food-grade SUS316L stainless steel foil heating element, formed by precision-cutting and rolling a single sheet of foil into an integrated cylindrical heating chamber with a 10-turn coil structure.
The thin-wall design reduces thermal mass and heat storage, allowing the heater to reach operating temperature quickly. It takes just 3–6 seconds to reach a working temperature of 200°C from ambient, without lengthy preheating.
The stainless steel foil measures 273 × 32 mm, while the formed cylindrical heating chamber measures Ø18 × 32 mm, providing an effective heating area of 75.6 cm² for even heat distribution.
02
Airflow System
Isolated PEEK Airflow Path
The T Vibe features an isolated airflow channel that is physically separated from other internal components to minimize contact and potential contamination. The airpath is precision CNC-machined from medical-grade PEEK, a high-performance engineering plastic with high-temperature resistance, chemical resistance, and good dimensional stability.
PEEK maintains its chemical stability across the device's operating temperature range, providing an odor-free airflow path. Its combination of chemical resistance and mechanical durability makes it well suited to enclosed airflow channels.
Compared with glass, PEEK offers greater impact resistance and toughness while maintaining the dimensional stability required for longer, enclosed airflow paths.
The device uses a full convection heating architecture, allowing heated air to flow freely through the botanical material during inhalation. The airflow passes evenly through the material for consistent heating and extraction, producing consistent vapor and flavor.
03
Modular Design
Open Modular Structure
The T Vibe features an open modular structure with an accessible internal layout and no unnecessary hidden components. The device is assembled from precision CNC-machined parts and electromechanical components with secure, precise connections.
The device can be easily disassembled for routine cleaning, allowing residue to be removed from the chamber and airflow path. Deeper maintenance and component replacement can also be performed using basic hand tools.
The replaceable battery can be replaced when needed, while the modular construction allows individual components to be serviced or replaced. This reduces the need to replace the entire device and extends its overall service life.
04
Smart Control
0.96" OLED Display & Physical Buttons
The device features a 0.96-inch high-definition color OLED display with a clean, intuitive interface. It displays real-time operating information, including preset temperature (adjustable from 40–240°C), preheat status, SESSION mode timing, DEMAND mode runtime, battery level, charging status, and current operating status.
Three physical buttons—Fire, Plus, and Minus—provide direct control of the device, including start/stop, mode switching, and precise temperature adjustment.
Temperature and operating settings can be adjusted to suit individual preferences.
05
Viewing Window
Dedicated Viewing Window
The T Vibe features a dedicated viewing window that allows users to see the botanical material during heating and monitor the extraction process in real time.
This provides a visual reference for adjusting temperature and inhalation rhythm during use, helping users achieve their desired vapor density and flavor profile.
06
Design & Colors
Two Colors, Interchangeable Components
The T Vibe is available in two colors, with interchangeable exterior components that allow users to change the appearance of the device to match their personal style.
07
Structural Design
Split Isolated Body | Structural Safety Protection Design
The T Vibe uses a split body structure that physically separates the battery compartment from the heating chamber. This separation limits heat transfer from the heating chamber to the battery compartment.
The modular layout also simplifies disassembly and maintenance. The heating and battery modules can be serviced or replaced independently, reducing wear on other components and extending the device's overall service life.
08
Airflow Control
Stepless AFC Airflow Control | Custom Resistance for Diverse Flavors
The T Vibe features a rotary stepless AFC (Airflow Control) knob, allowing continuous airflow adjustment from a Ø2.2 mm to Ø6 mm aperture.
At the minimum Ø2.2 mm setting, airflow is restricted and inhalation resistance is higher. At the maximum Ø6 mm setting, airflow is increased and inhalation resistance is lower. The adjustable airflow allows users to set their preferred draw resistance and airflow-to-vapor ratio.
09
Glass Tube
Ø16mm Universal Glass Tube | High Compatibility & Easy Cleaning
The device uses a Ø16 mm standard glass tube compatible with most commonly available glass stems of the same size, providing a wider range of replacement and accessory options.
The transparent glass chamber allows users to observe the internal airflow and botanical material during use.
The glass tube is heat resistant, removable, and easy to clean, making it suitable for repeated high-temperature use.
Technical Specifications
Heating Element
SUS316L Foil
0.05mm food-grade stainless steel, 10-turn coil
Heat-up Time
3–6 Seconds
From ambient to 200°C working temperature
Heating Area
75.6 cm²
Foil 273×32mm, Chamber Ø18×32mm
Airflow Material
Medical PEEK
Isolated CNC-machined, odor-free path
Temperature
40–240°C
Precise adjustable via Plus/Minus buttons
Display
0.96" OLED
Color display with real-time information
Airflow Control
Stepless AFC
Rotary knob, Ø2.2mm to Ø6mm
Glass Tube
Ø16 mm Standard
Removable, heat resistant, easy to clean
Structure
Split Body
Battery separated from heating chamber
